Injection & Pour Foam Insulation
Controlled foam filling for enclosed cavities, marine voids and custom applications
Injection and pour foam can fill selected cavities where conventional spray equipment cannot reach the surface directly. Each job needs the cavity volume, access points, expansion space and surrounding construction checked before foam is introduced.
Foam filling where direct spray access is limited
Spray foam is applied onto an exposed surface. Injection or pour foam is introduced into a defined cavity and expands within that space. It can be useful when the cavity is accessible through planned openings but the internal surfaces cannot be sprayed directly.
Enclosed cavities
Selected voids, panels and compartments that can be assessed, vented and filled through suitable access points.
Restricted access
Areas where the shape or surrounding construction prevents conventional spray application to the required surfaces.
Custom applications
Fabricated items, equipment, marine compartments and specialist projects requiring a controlled foam-filling method.
Uses are determined by the cavity, not just the material
The surrounding structure must be able to tolerate the foam’s expansion, and the cavity needs a practical way for air to escape as foam rises.
Void and cavity filling
Defined cavities in suitable construction where the volume, access points and internal condition can be established before filling.
Custom fabrication
Fabricated panels, insulated components, equipment housings and specialist assemblies designed to accept expanding polyurethane foam.
Industrial and agricultural uses
Project-specific cavities or equipment where insulation, separation or stable foam filling is required and the substrate can be properly assessed.
Boat hulls, pontoons and enclosed marine compartments
Pour foam is commonly considered for buoyancy compartments, pontoons, floats and other enclosed marine voids. The cavity design, drainage, existing moisture and required foam density all need to be considered before filling.
- Boat hull and buoyancy compartments
- Pontoons, floats and fabricated marine sections
- Defined voids where access and venting can be planned
- Repairs or alterations requiring the existing foam and cavity condition to be checked first
Important: foam should not be used to seal active leaks or trap water inside a hull. Leaks, corrosion, drainage and structural issues need to be resolved before the cavity is filled.
A simple foam test before work begins

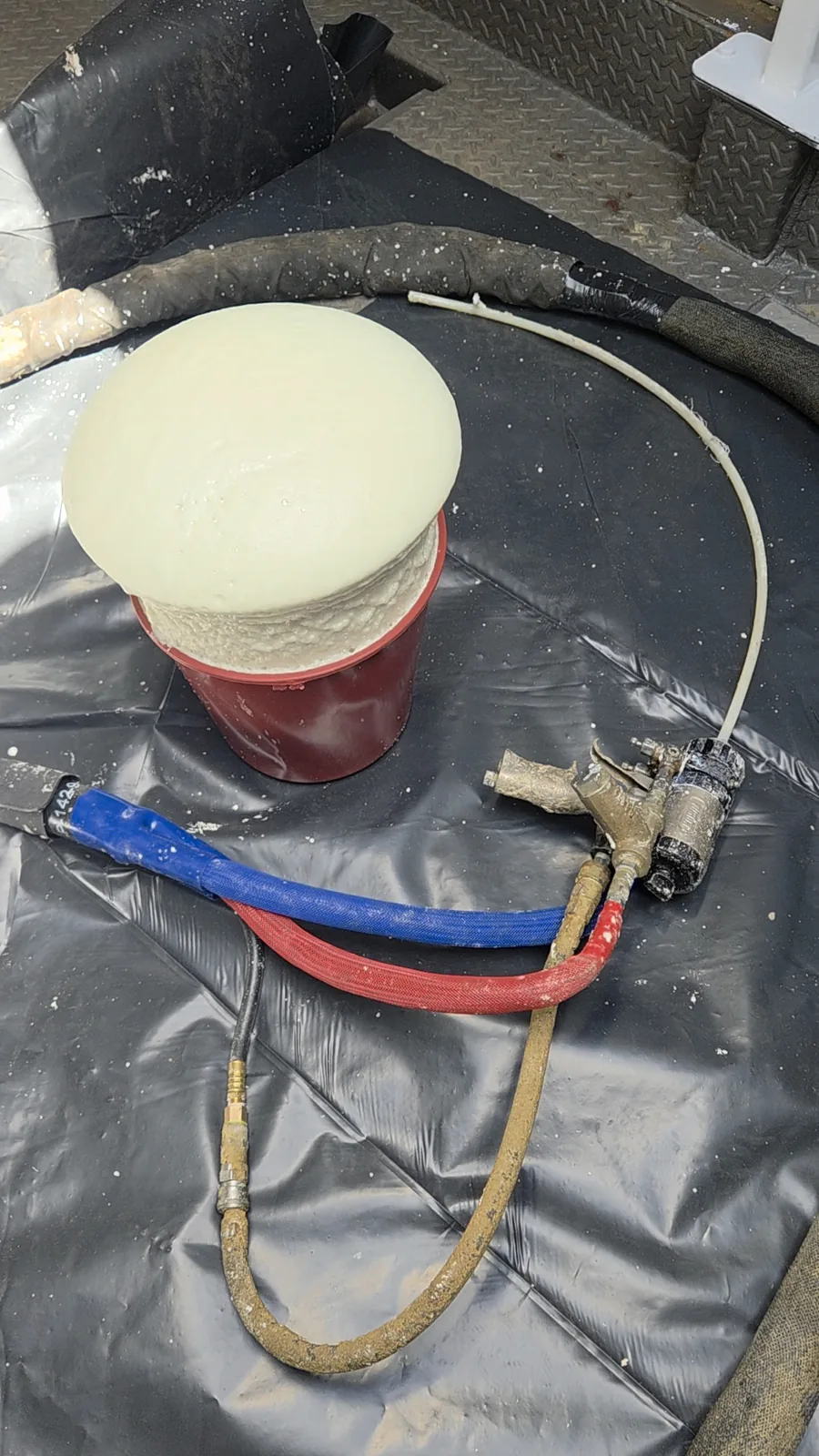

This photograph shows a small test completed with the application equipment. It gives us a quick visual check that the foam is mixing and expanding as expected before we move on to the job itself.
Where required, the test also helps us plan how the foam will be introduced into the cavity.
Foam expansion test
A routine check completed before application.
Injection foam is not a universal fix for every enclosed wall
We do not recommend blindly filling an unknown cavity. The construction, moisture condition, services, vents and likely expansion path need to be understood first.
Finished house walls
Standard finished residential walls are not automatically suitable for injection foam. Hidden wiring, building paper, moisture, blocking and fragile linings can make an uncontrolled fill inappropriate.
Wet or leaking cavities
Foam does not replace leak repairs, drainage or corrosion treatment. Moisture and water-entry problems must be identified and corrected before filling.
Unknown volumes
A reliable volume estimate and suitable vent points are needed. Irregular cavities may contain obstructions or connected spaces that change how the foam rises.
Expansion pressure
The surrounding panels and linings must be able to tolerate the application. The filling sequence is planned to reduce unnecessary pressure and heat build-up.
Assessment comes before filling
Injection and pour foam work is priced and planned around the specific cavity rather than a generic square-metre rate.
Review the application
We discuss what is being filled, why foam is required, the surrounding material and whether the cavity is new, existing or part of a repair.
Confirm access and volume
Available drawings, dimensions, photographs and access points are reviewed so the likely foam quantity and filling sequence can be considered.
Check cavity condition
Leaks, moisture, loose material, corrosion, services and connected voids are identified where reasonably possible before work starts.
Plan fill and vent points
Injection openings and air-release points are positioned to suit the cavity shape and the expected direction of foam rise.
Condition and test material
Material temperature and mixing are controlled, with an expansion check completed where appropriate before filling begins.
Fill in controlled stages
Foam is introduced in quantities suited to the cavity, allowing for rise, heat and pressure rather than attempting an uncontrolled single fill.
The access and surface determine the method
Spray foam
Best where the substrate is exposed and the applicator can build a continuous insulation layer directly onto the surface. Common examples include roofs, walls, containers and underfloor areas.
Injection or pour foam
Used for selected enclosed cavities and voids that can be filled through planned openings. The cavity must be understood well enough to manage volume, venting and expansion.
Injection and pour foam questions
Can foam be injected into existing walls?
Sometimes, but not every wall is suitable. The cavity construction, moisture condition, services, linings and expansion path need to be understood before injection foam can be recommended.
Is pour foam used in boats?
Yes. Suitable polyurethane pour foam can be used in buoyancy compartments, pontoons and defined marine voids. The required density, drainage, cavity condition and surrounding structure must be considered first.
Will the foam fill every part of a cavity?
That depends on the cavity shape, obstructions, venting and filling sequence. Drawings, inspection points and staged filling help reduce uncertainty, but inaccessible cavities need to be assessed case by case.
Does injection foam stop leaks?
No. Active leaks, drainage faults and corrosion need to be repaired before foam is introduced. Foam should not be used to hide or trap an unresolved water problem.
What information is needed for a quote?
Send photographs, dimensions, the cavity purpose, surrounding material, available openings, site location and any drawings or previous repair information.
What to send us
More information at the start helps us decide whether injection or pour foam is appropriate before equipment is mobilised.
- Photographs of the item or cavity
- Internal dimensions or estimated volume
- Site location and access
- Construction material and panel thickness
- Existing openings and possible vent points
- Marine, insulation, buoyancy or void-filling purpose
- Known leaks, moisture or previous foam
- Drawings or fabrication details where available
Have a cavity or specialist foam-filling application?
Send us photographs, dimensions and a short explanation of what you need the foam to achieve. We can confirm whether injection, pour foam or direct spray application is the better starting point.
